15' x 24' Coastal 5" Steel Frame Oval Pool & Bundle | 48"
SKU: 15x24x48COASTALSTEEL
Click to see what's included in this Bundle!
Click to see what's included in this Bundle!

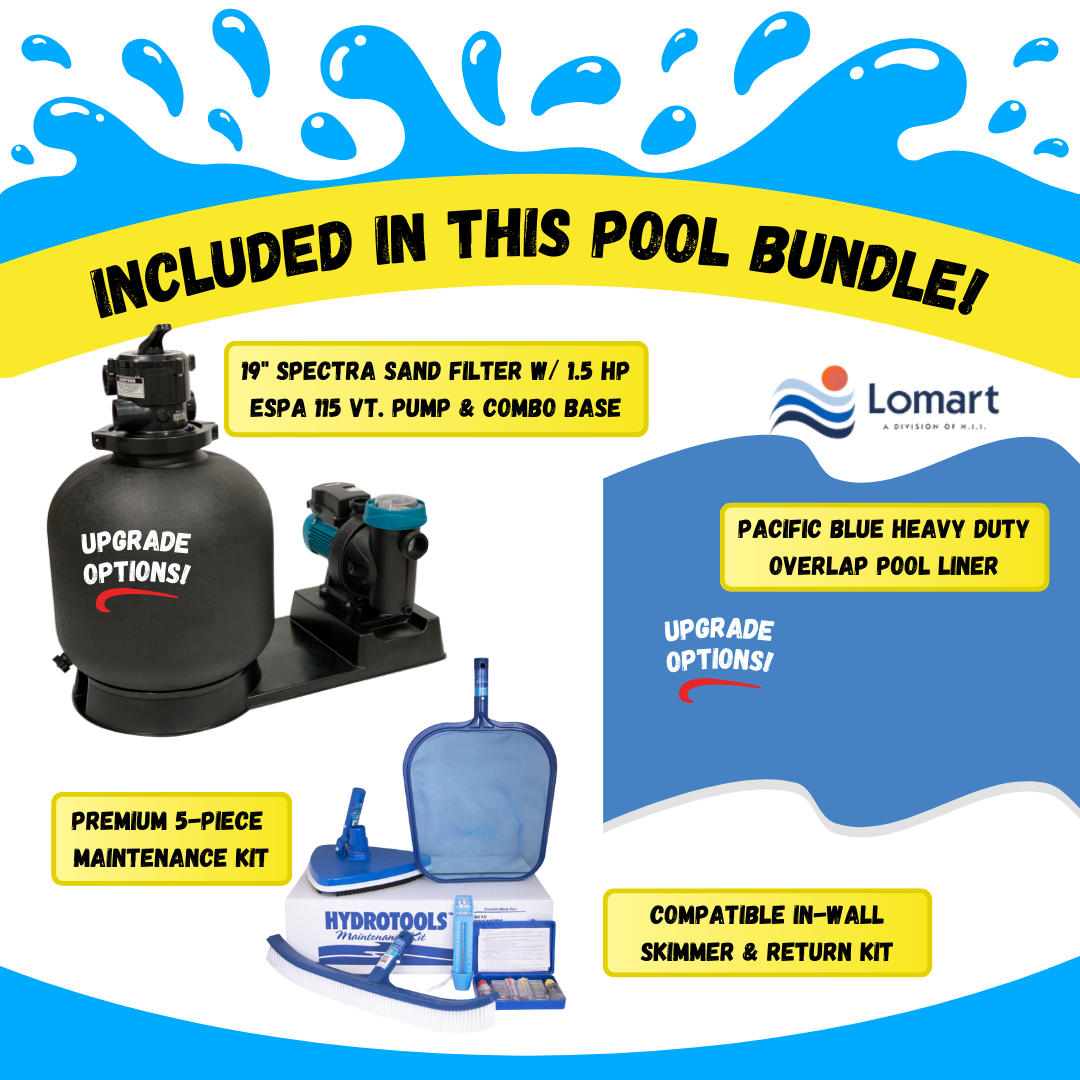

Your pool package includes a skimmer/return kit, sand filter, pump and overlap liner. Read more details below:
1. Heavy Duty Pacific Blue Overlap Liner
A special blend of natural, raw materials that ensure top-quality vinyl for all liners. The ultraviolet inhibitors protect the liner from the sun's rays as well as enhance longer life.
Lomart & H.I.I. quality premium liners are a full 20 mils thick on both the sidewall and pool bottom to assure superior performance.
All Lomart & H.I.I. liners are sealed with Fusion-Weld, a sealing technique unmatched in the industry, which provides durability and supreme quality.
Upgraded Liners available when customizing your pool!
Lomart & H.I.I. provide a 100% seam warranty - 100% for a lifetime.
2. In-wall Skimmer & Return Kit
Through the wall installation for superior skimming action, ABS resin lid serves as a vacuum plate and is color coordinated to match the skimmer body.
Extra wide weir to automatically keep surface free of insects and debris. Patented automatic weir shut-off and relief valve combo to prevent air
suction and protect pump against damage from loss of prime. Large basket to collect debris while vacuuming.
Patented inside pool wall vacuum fitting for maximum convenience and effectiveness. U-gasket to improve water tight installation. Unitized construction of rust-proof, high impact ABS resin for maximum durability. 1 1/2″ skimmer hose fitting and 1 1/2″ return hose fitting for easy installation.
3. Spectra 4 Sand Filter
*16" Spectra 4 Sand Filter included in Pool Bundles Sized: 8' Round, 12' Round, 15' Round, 18' Round, 21' Round, 8'x12' Oval, 10'x15' Oval, 12'x18' Oval, 12'x20' Oval and 12'x24' Oval.
*19" Spectra 4 Sand Filter Included on all other sized Pool Bundles not listed above
Seven position multi-port valve functions for filter, backwash, recirculate, pump-to-waste, winterize and closed. Molded upper tank distributer for maximum water dispersion.
Large access port with V band clamp allowing easy access into tank unit for efficient sand loading or filter maintenance. One piece, full diameter circular underdrain to prevent channeling of sand bed.
Molded of specially formulated resins for maximum durability. Easy to read pressure gauge indicates when filter needs cleaning. Automatic air relief to eliminate excess pressure that could damage the filter tank.
Drain port for easy removal of debris. Uses a #20 gauge crystal silica sand for exceptional filtration. Filter combo base also included to mount filter and pump.
Upgraded Filter/Pump Systems available when customizing your pool!
Special Limited - 10 Year Warranty on Filter Tank.
4. Espa 1.5 HP Energysaver Pump (115vt)
Energysaving pump with up to 80% savings in operation costs!
Durable, corrosion proof housing for dependable service and all weather performance. Heavy duty motor with integrated automatic thermal overload protector.
See-through lid makes inspection fast and easy, engineered polymer remains clear and strong. Easy to remove lid for fast cleaning.
Pump comes with 6 foot standard Power Cord, 115 volt.
Built in automation with Bluetooth smartphone app. 115vt with 6 ft. standard cord and plug. The world's most energy efficient swimming pool pump.
Upgraded Filter/Pump Systems available when customizing your pool!
5-Year Warranty on Pump.
5. Premium Maintenance Package -
5-Piece Maintenance Kit:
- Weighted Vac Head
- Leaf Net
- Pool Brush
- Thermometer
- Water Test Kit or Water Test Strips
PLEASE ALLOW 1-2 WEEKS FOR SHIPPING
Couldn't load pickup availability
*Lift Gate Service Charge of $69.99 required for this purchase and will be added at Checkout.
This will make receiving the shipment much easier for you. The delivery will come on a special truck with a hydraulic lift. The driver will use the lift to place the pallet on the ground curbside.
The Coastal Steel Frame 48"
High quality 5 1/2" Steel Pool at this great price! Our Coastal Pool will give you and your family many years of fun in the sun. Made in America by H.I.I., an industry leading company who manufacturers Doughboy, Lomart and Embassy swimming pools.
RUGGED CONSTRUCTION
Our durable 5 1/2" wrap-around top rails and uprights provide the heavy duty structure of this pool for many years of no care maintenance. Deluxe resin seat covers give this pool a sleek modern look.
Aruba Blue Ionizer Friendly Frame!
STAR GALFIN GALVANIZATION PROTECTION
All steel parts are protected by the star Galfin process. A proprietary combination of zinc and aluminum coats all steel parts to give them superior corrosion resistance when compared to other similarly priced pools. This pool will not chip, fade, rust or peel and is designed to look as good ten years from now as it does today.
STAGGERED BOLT WALL CLOSURE SYSTEM
Unlike 90% of the pools on the market today, our Coastal Pool features a stronger top of the line wall construction connection system with staggered bolts. This provides maximum strength and wall stability! This pool uses a widemouth skimmer.
WALL CORRUGATION
Features twice the wall corrugation of most manufactures. This costs more to manufacture, but gives the pool more strength for any weather condition it could face in the entire country.
BOTTOM RAILS
Premium-gauge steel is used for the bottom rails to ensure a long, trouble free life of the pool. Backed by a full 20-Year Warranty, this bottom rail is similar to ones used on DOUGHBOY® pools.
Deep and balanced wall corrugation offers wall flexibility and vertical strength. Coastal Pool walls have more corrugation per inch than most other brands.
TRIMLINE SPACE SAVER™ OVAL
This pool features an easy-to-install, one-part design, which provides a stronger installation and more attractive appearance and allows larger pools to fit into smaller backyard settings.
VERTICALS & TOP RAILS
One of the strongest verticals and uprights on the market today. Constructed for extra strength and rigidity.
QUALITY FEATURES
Pre-punched skimmer and return openings to eliminate sharp edges that could cut the liner during installation. From blazing sunlight to driving rain and snow, your pool will look virtually new for years to come.
POOL USES A WIDEMOUTH SKIMMER ONLY- INCLUDED IN THIS POOL PACKAGE!
Coastal Steel Frame Pool Specifications:
- ARUBA BLUE IONIZER FRIENDLY FRAME!
-
WALL HEIGHT: 48 inches
- WALL COLOR: Silver Tone/Gray
- UPRIGHTS/COLOR: 5 in. Steel/Light Gray
- TOP SEAT COVERS: 2 pc. Resin/Light Gray
- TOP SEATS: 6 in. Steel/Light Gray
- TOP CONNECTION PLATES: Upgraded Premium Steel
- TOP CONNECTION TRACK: Upgraded Premium Steel
- BOTTOM CONNECTION PLATES: Upgraded Premium Steel
- BOTTOM CONNECTION TRACK: Upgraded Premium Steel
- HARDWARE: Zinc Dichromate
- LINER: 20 mil. Blue Overlap (Upgrade Available)
- FRAME WARRANTY: 20 Years
- WALL WARRANTY: 20 Years
- LINER WARRANTY: 15 Years
- STAINLESS STEEL SERVICE PANEL: No
- SKIMMER SIZE: Widemouth
MADE IN AMERICA BY H.I.I.
Hollowell Industries Incorporated is the manufacturer of Doughboy, Lomart & Embassy Pool Co for over 75 years!
