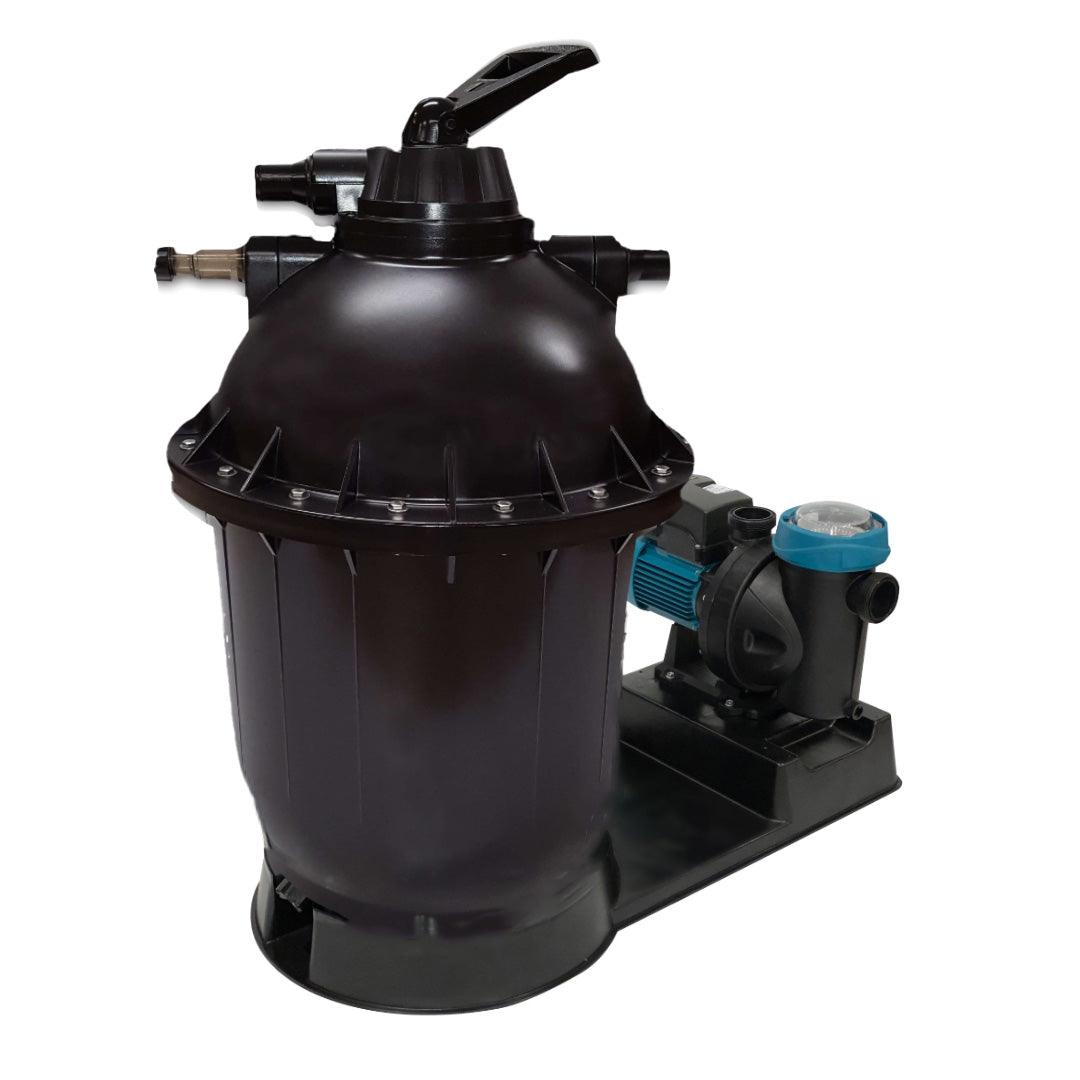

Sequel 16" Diatomaceous Earth (DE) Filter System with 1.5 HP Espa Energy Saver Pump 220 vt.
SKU: 5-1601-000 | 5-SILEN S1 1.5*This Product is currently available as part of a Swimming Pool Package ONLY and cannot be purchased separately at this time.
Sequel 16" Diatomaceous Earth (DE) Filter System
A diatomaceous earth filter that features a unique V-Grid design that provides a large surface area for D.E. distribution. In addition, the Permanently Encapsulated Filtering Grid Ends provide long grid life and less maintenance. These features are essential for good performance and a clearer, sparkling pool for you and your family to enjoy.
Features:
- Six position rotary valve
- (2) 1 1/2" x 8 ft. (1) 1 1/2" x 36" pump to filter hose
- Santoprene valve gasket & tank "O" ring
- 16" (I.D.) injection molded tank
- 20 sq. ft. of filtering area
- See-through waste port with cap
Special Limited - 10 Year Warranty on Filter Tank.
1.5 HP Espa Energy Saving Pump 220 vt.
Energy Saving Pump with up to 80% savings in operation costs!
Ultra-silent and self-priming up to 4 meter.
Durable, corrosion proof housing for dependable service and all weather performance. Heavy duty motor with integrated automatic thermal overload protector.
See-through lid makes inspection fast and easy, engineered polymer remains clear and strong. Easy to remove lid for fast cleaning.
220 volt model.
The world's most energy efficient swimming pool pump.
Energy saving pool pumps have more efficient motors and allow you to set the speed to exactly what your pool needs and no more. They will save you the most on your energy bill compared to other pool pumps.
Electrical features
Electrical isolation: F Class
Motor type: Asynchronous
Protection rating: IPX5
Reset: Automatic
Service factor: S1
Materials
Diffuser/s: Technopolymer
Discharge body: Technopolymer
Impeller/s: Technopolymer
Mechanical seal: Aluminium-Graphite
Motor casing: Aluminium
O-rings: NBR/EPDM
Pre-filter: Technopolymer
Pump body: Technopolymer
Pump shaft: Stainless steel AISI 431
Suction body: Technopolymer
Manufacturing features
Discharge connection type: Glue union
Discharge diameter: 63mm
Motor cooling: Fan
Seal type: Mechanical seal
Suction connection type: Glue union
Suction diameter: 63mm
